D&B Workato Connector UI Buttons Not Working

Gloria
Updated

Summary



After migrating a Reltio tenant from AWS to GCP (<tenantId>on <environment>. The D&B Workato connector buttons in the UI (“Get D&B Match” and “Get D&B Company Info”) stopped working.

Clicking the buttons resulted in a 401 error from APIM:

com.reltio.services.rih.proxy.service.http.IHttpClient.StatusException:
401: [{ "error": "Access to this API has been disallowed" }]



Symptoms

  • UI buttons:

    • Get D&B Match

    • Get D&B Company Info

  • Behavior:

    • Buttons appear in the UI, but clicking them does not trigger successful enrichment.

    • HAR trace and backend logs show APIM returning 401 – Access to this API has been disallowed.

    "innerErrorData": {
  "exception": "com.reltio.services.rih.proxy.service.http.IHttpClient.
  StatusException:401: [{\n    \"error\": \"Access to this API has
  been disallowed\"\n}]",
  "stack": []
}

Customer Scenario

  1. The customer originally had the D&B Workato integration working on AWS.

  2. The tenant was migrated from AWS to GCP.

  3. Post-migration, the D&B UI buttons stopped working:

    • APIM endpoint changed (to a different workspace/region).

    • Customer and Reltio reset:

      • API key,

      • APIM collection endpoint,

      • API collection,

      • RIH Proxy (per MANF-9222).

  4. Despite these resets, the 401 error persisted.

Root Cause

The profile name configured in the UI plugin did not match the RIH Proxy profile name exactly.

The names are case-sensitive, and the mismatch was subtle:

  • UI Configuration:

    "profileName": "<tenantId>_DnB_API"

  • RIH Proxy Profile Name:

    <tenantId>_DNB_API

Difference: the “n” in “DnB” vs “DNB”.

Because of this mismatch:

  • The UI plugin invoked the RIH Proxy using a non-existent/unauthorized profile.

  • APIM rejected the request with 401 – Access to this API has been disallowed.

The AWS → GCP move was not the direct technical cause; it just coincided with the misconfiguration and made it appear migration-related.


How the Issue Was Fixed

  • Reviewed UI Configuration

    The D&B plugin configuration in Physical/UI configurations included:

{
  "id": "D&B",
  "views": [
    {
      "id": "com.reltio.plugins.entity.org.GetMatchButtonView",
      "label": "Get D&B Match",
      "url": "https://360-rih-proxy.reltio.com/api/v1/proxy/workato/invoke_endpoints",
      "success": "Success! Please reload this profile and review the 'Verification' details to check whether a match was found. Resolve the Potential Match to enrich the profile.",
      "fail": "Failure:",
      "loading": "Processing...",
      "height": 34,
      "profileName": "<tenantId>_DnB_API",
      "workatoEndpoint": "https://apim.workato.com/equinix311/trigger-recipes/dev-dnb-api-real-time-enrichment-rest-api?doNotMerge=true&dataBlocks=companyinfo_L2_v1,hierarchyconnections_L1_v1&entityURI=",
      "proxyMethod": "POST"
    },
    {
      "id": "com.reltio.plugins.entity.org.GetCompanyDetailsButtonView",
      "label": "Get D&B Company Info",
      "url": "https://360-rih-proxy.reltio.com/api/v1/proxy/workato/invoke_endpoints",
      "success": "Success! This profile should now be enriched with the latest company information.",
      "fail": "Failure:",
      "loading": "Processing...",
      "height": 34,
      "profileName": "<tenantId>_DnB_API",
      "workatoEndpoint": "https://apim.workato.com/equinix311/trigger-recipes/dev-dnb-api-real-time-enrichment-rest-api?doNotMerge=false&dataBlocks=companyinfo_L2_v1,hierarchyconnections_L1_v1&entityURI=",
      "proxyMethod": "POST"
    }
  ]
}



  • Compared Against RIH Proxy

    • The RIH Proxy username/profile was <tenantId>_DNB_API.

  • Corrected the Profile Name in UI Config

    • Updated the UI configuration:

      • From: "profileName": "<tenantId>_DnB_API"

      • To: "profileName": "<tenantId>_DNB_API"

  • Result

    • After updating and saving the UI configuration, the D&B buttons started working again.

    • Subsequent clicks correctly invoked the Workato recipe through APIM and RIH Proxy, and enrichment was completed as expected.

Troubleshooting Checklist for Similar Issues

If D&B (or any RIH/Workato-based) UI buttons suddenly stop working, and you see a 401 with “Access to this API has been disallowed”:

  1. Check APIM / RIH Error

    • Confirm the error in HAR or logs:

      • StatusException:401 with "Access to this API has been disallowed".

  2. Verify Profile Name Consistency (Case-Sensitive)

    • In UI configuration:

      • Inspect the plugin view’s profileName.

    • In RIH Proxy:

      • Check the actual profile name used for that integration.

    • Ensure they are identical, including:

      • Uppercase vs lowercase,

      • Spelling (e.g., DNB vs DnB).

  3. Validate Workato Endpoint & Keys

    • Confirm:

      • workatoEndpoint URL is correct for the environment (e.g., dev vs prod).

      • API keys and APIM collections are current and match the new region/workspace after migration.

  4. Re-test After Corrections

    • Update configuration if needed.

    • Save and reload the profile in the UI.

    • Click the button again and verify:

      • No 401 errors.

      • Enrichment details are updated on the entity profile (for entity-based connectors).

  • Steps taken to apply the DnB connector to production.


Prereqs.

  • Ensure your D&B Data Blocks integration is deployed in Reltio Integration Hub (RIH), and you meet the connector prerequisites.
  • Users who should see/click the buttons must have a D&B connector role (e.g., ROLE_DNB_CONNECTOR).


Step 1: Create the RIH Proxy token (used by the buttons)
Step 2: In Tools → API Platform:


  • Create a new API Client (Auth method = Auth Token) for the D&B REST API collection.
  • Generate an API Key (profile name convention like {tenantId}_{apiCollection}) and keep the token handy; you’ll reference this profile name in the UI config.

Step 3: Wire up RIH connections (RIH project)


  • In Integration Hub → Projects → Connections:
  • Open D&B | CON | Reltio Platform Connection and enter your Reltio environment URL, tenantId, clientId, and clientSecret. Enable Use Client Authorization.
  • Open D&B | CON | D&B Services Connection, provide the D&B API key/secret, and select the licensed Data Blocks you plan to use (Company Info, Principals & Contacts, Hierarchies & Connections, Diversity Insights). Connect and verify.

Step 4: Enable recipes and API endpoint


  • In your project/workspace, enable the real-time recipes (e.g., Real Time Enrichment – Match and Append).
  • In API Platform → API Collections, activate the Real Time Enrichment – REST API endpoint.
  • Enable the single-trigger recipe (Real-Time Enrichment – REST API). (One trigger covers all buttons; parameters drive behavior.)

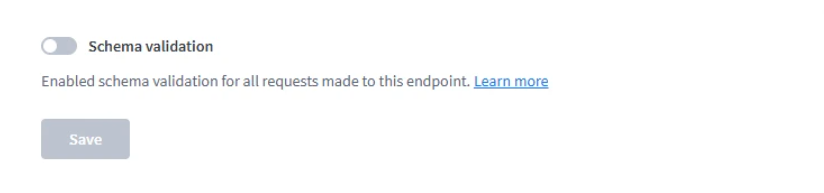

  • Make sure that Schema validation is disabled

Step 5: Open a Support ticket to register the profile with the provided API key. Please provide the name of the API key.  The profile name will be returned.
Step 6: Add the buttons to the Organization UI (UI Modeler)


  • Go to Reltio Console → UI Modeler → Import/Export UI Config Files and download com.reltio.plugins.entity.organization.json. Back it up.
  • In the JSON, locate the top-level sidePanelViews array and add a section (e.g., "id": "D&B") that contains three CustomActionView entries—one per button:
    • Get D&B Match (does not merge, returns candidate)
    • Get D&B Company Info (merges new data)
    • Get D&B Hierarchy & Contacts (pulls hierarchy & principals/contacts)


Step 7: For each button, set the key fields (names vary a little by your environment):


  • "class": com.reltio.plugins.ui.CustomActionView
  • "label": Button text (as above)
  • "url": RIH proxy endpoint (e.g., https://360-rih-proxy.reltio.com/api/v1/proxy/workato/invoke_endpoints)
  • "profileName": the API Key profile name you created in step 5 (e.g., DnB-_REST_API_Collections)
  • "workatoEndpoint": Your Workato/RIH endpoint plus parameters. Typical patterns:
  • Match: .../dev-dnb-api-real-time-enrichment-rest-api?doNotMerge=true&dataBlocks=[list]&entityURI=
  • Company Info: doNotMerge=false&dataBlocks=[list]&entityURI=
  • Hierarchy & Contacts: doNotMerge=false&dataBlocks=[list]&entityURI= (include hierarchy/principals blocks)
    • "proxyMethod": POST
    • "action.permissions": allow the proxy and Workato domains (e.g., https://360-rih-proxy.reltio.com, https://apim.workato.com)
    • "action.files": include the published helper script for the proxy action if provided by Reltio
    • "canRead.roles": include ROLE_DNB_CONNECTOR (and admins, as needed)


Step 8: Re-upload and publish the modified UI config.
